WHISPERKIT COREML · APPLE FOUNDATION MODEL · MLX SWIFT

Spoken thoughts into
structured engineering specs.

Capture rambling voice ideas instantly on Apple Watch, iPhone, or Mac. Decoupled two-stage on-device pipeline transcribes verbatim with WhisperKit CoreML and synthesizes Markdown specs via Apple Intelligence. Zero servers. Zero telemetry.

▲ Stage 1 ASR
WhisperKit CoreML
Dispatched to Apple Neural Engine
▲ Stage 2 LLM
Apple Foundation Model
Opt-in Qwen3 MLX Metal GPU
▲ Network Delta
0.00 KB / s
100% Air-Gapped & Sandboxed
▲ Trigger Entry
1-Tap Complication
watchOS 10 & ⌥ Space macOS Menubar

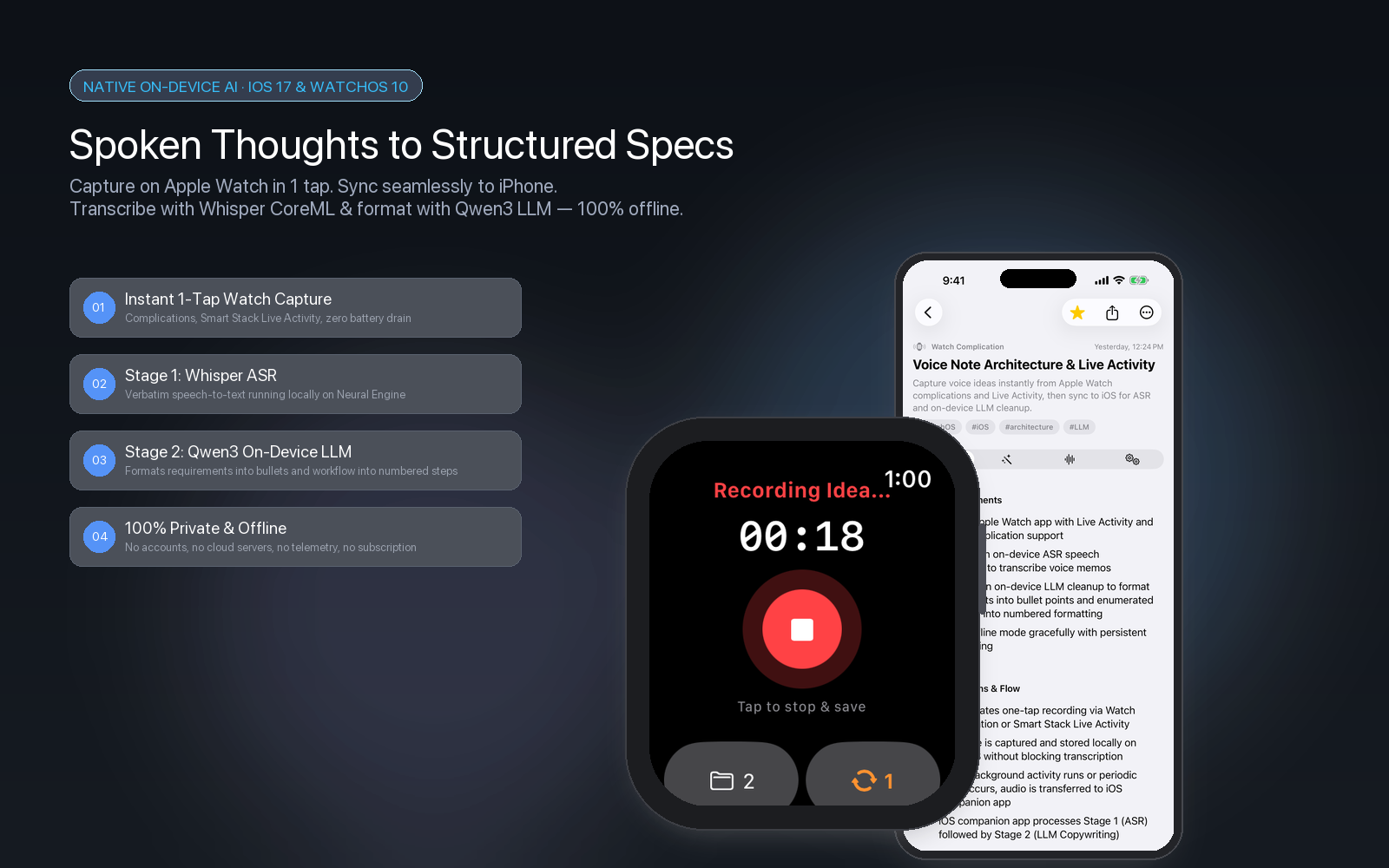

Voxbrief Hero Showcase: Apple Watch and iPhone On-Device Pipeline

The Two-Stage On-Device Transformation

Experience how disorganized verbal brainstorming transforms into structured engineering specifications with zero cloud round trips.

Apple Silicon ANE · Offline
00:24 / 01:10
AAC @ 32kHz Mono · Sandboxed /Documents
STAGE 1 Acoustic WhisperKit
ANE CoreML Decode

Decoupled Hardware Dispatch Pipeline

Zero cloud servers, zero network sockets. Every stage maps directly to Apple Silicon hardware blocks for maximum energy efficiency and complete privacy.

01 · Capture
Hardware Ingest
Apple Watch complications, macOS Menubar daemon (⌥ Space), and iOS Live Activities record AAC audio directly to local flash.
32kHz mono AAC
→
02 · Transport
Local WCSession
Encrypted background file transfer queues audio until watch and phone are near. Zero cellular transmission or battery drain.
Encrypted Queue
→
03 · ASR Decode
WhisperKit CoreML
OpenAI Whisper base.en compiled for Apple Neural Engine (ANE). Delivers verbatim acoustic transcription without network round trips.
Apple Neural Engine
→
04 · Dictionary
Jargon Guard Hook
Personal Technical Dictionary runs regex boundary token matching to protect technical terms (e.g. gRPC, Metal, LLVM) from corruption.
Regex Matcher
→
05 · LLM Synthesis
Apple Foundation Model
Native SystemLanguageModel synthesizes requirements, logic rules, and task checklists. Opt-in Qwen3 MLX Metal GPU support.
Metal GPU & ANE

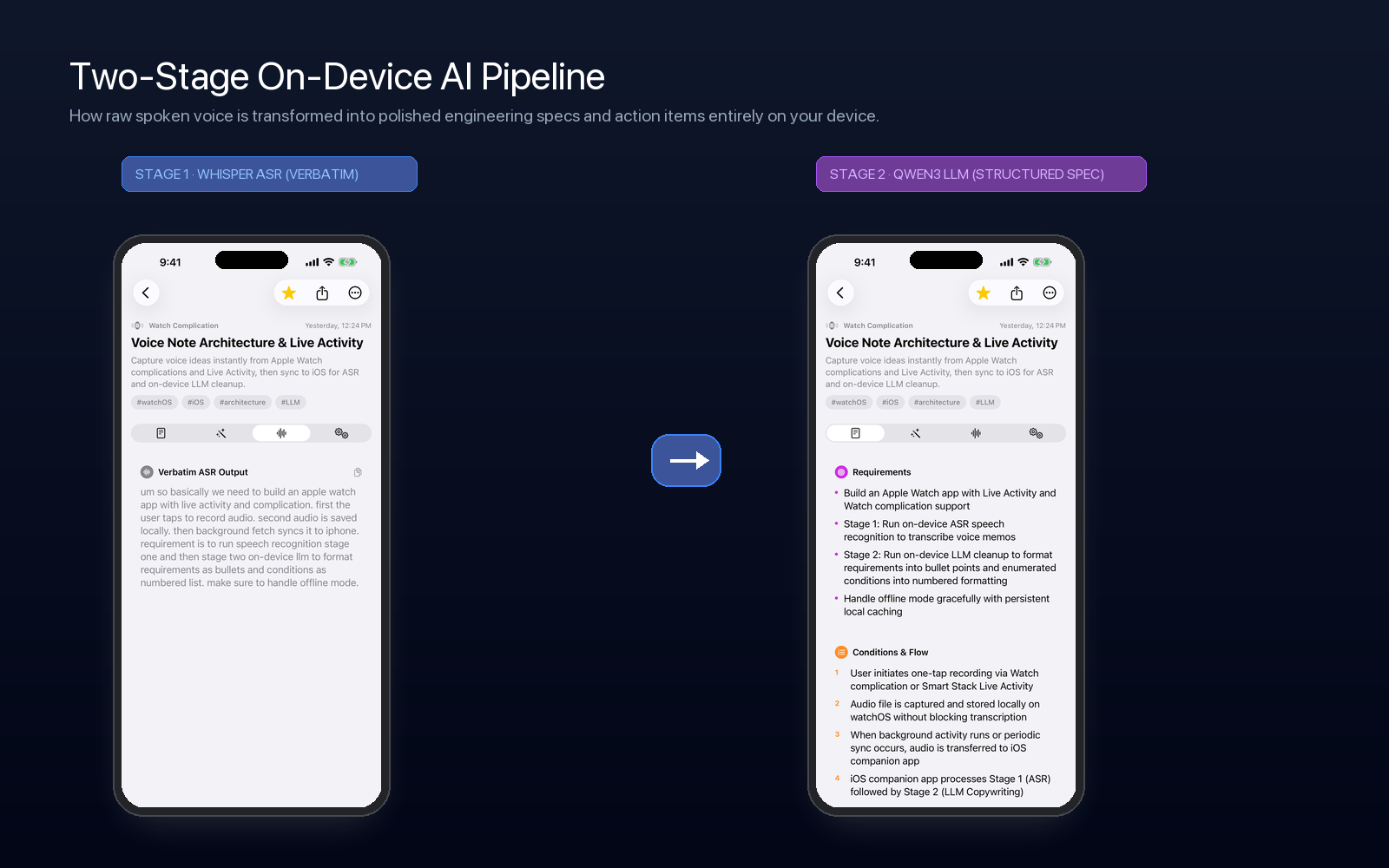

Two-Stage Pipeline Hardware Blueprint

Engineered for Technical Builders

No accounts, no subscriptions, no cloud latency. Native Swift tools for engineers, architects, and product leads who think out loud.

Decoupled Two-Stage Intelligence

Speech recognition is strictly decoupled from LLM summarization. Stage 1 executes WhisperKit CoreML for verbatim acoustic decoding, producing an immutable transcript audit trail. Stage 2 executes the native Apple Foundation Model by default (with opt-in Qwen3 via MLX Swift) to generate structured technical requirements, condition trees, and actionable task checklists.

WhisperKit CoreML Apple Neural Engine Apple Foundation Model MLX Swift Metal GPU Private Ollama LAN

Apple Watch Standalone

One-touch complication on your watch face (Circular, Corner, Rectangular, Inline) captures ideas instantly without waiting for iPhone. Preserves battery with offline AAC encoding, automatically syncing in the background when in range.

WidgetKit Complications WatchConnectivity Zero Battery Drain

macOS Menubar & Global Hotkey

Press ⌥ Space anywhere in macOS to trigger a floating recording HUD. Dictate stream-of-consciousness thoughts; Voxbrief processes the spec locally and uses accessibility synthetic events to paste structured Markdown directly into VS Code, Xcode, or Obsidian.

Global Hotkey ⌥ Space Menubar Daemon CGEvent Direct Paste

Personal Technical Dictionary

A built-in regex word-boundary filter guarantees custom domain jargon, acronyms, and proprietary library names (e.g. CoreML, Kubernetes, gRPC, PostgreSQL) are strictly protected from speech recognition drift and LLM hallucination.

Regex Word Boundaries Jargon Sanitization Zero Hallucinations

Air-Gapped Privacy Protocol

Your voice, notes, and architectural ideas never leave your device. Zero telemetry beacons, zero analytics trackers, and zero third-party cloud SDKs. Fully functional on flights, subways, and secure offline facilities.

0 Bytes Cloud Egress Sandboxed Storage Airplane Mode Ready

Why On-Device Architecture Wins

Comparing local Apple Silicon inference against centralized cloud transcription and copywriting services.

Metric / Dimension Cloud Voice Recorders
(Otter, Notion AI, Cloud Whisper)
Voxbrief
(100% On-Device AI)
Data Egress & Storage
Audio file handling
Streamed to Remote Cloud

Raw audio streams and transcripts uploaded to external servers, subject to remote retention policies.

Zero Bytes Sent (0 KB/s)

100% processed in local Apple Silicon unified memory and stored strictly in sandboxed local JSON storage.

Offline Autonomy
Airplane mode & connectivity
Requires Internet Access

Fails completely without Wi-Fi or cellular reception. Inoperable on flights, trains, or secure offline labs.

Full Offline Autonomy

Complete ASR transcription and LLM spec synthesis run locally without any network connection.

Telemetry & Trackers
User surveillance footprint
Multiple Analytics SDKs

Product analytics, crash analytics, and user identification trackers embedded in binary.

Zero Tracking Beacons (0)

No Google Analytics, no Mixpanel, no Sentry, no telemetry. Pure Swift native code.

Hardware Acceleration
Compute execution
Server Queue RTT

Latency depends on network round-trip time, remote server load, and API rate limits.

Apple Neural Engine + Metal

WhisperKit CoreML runs on ANE; Apple Foundation Model & MLX Qwen3 leverage Metal GPU shaders.

Pricing Model
Monthly subscription cost
$10 – $30 / Month ($120–$360/yr)

Recurring billing, monthly token quotas, paywalls on export, and locked proprietary formats.

100% Free & Open Source ($0)

Open source under MIT license. Zero subscriptions, zero token caps, zero credit card requirements.

Native Interface Showcase

Engineered exclusively with SwiftUI for iOS 17+, watchOS 10+, and macOS 14+.

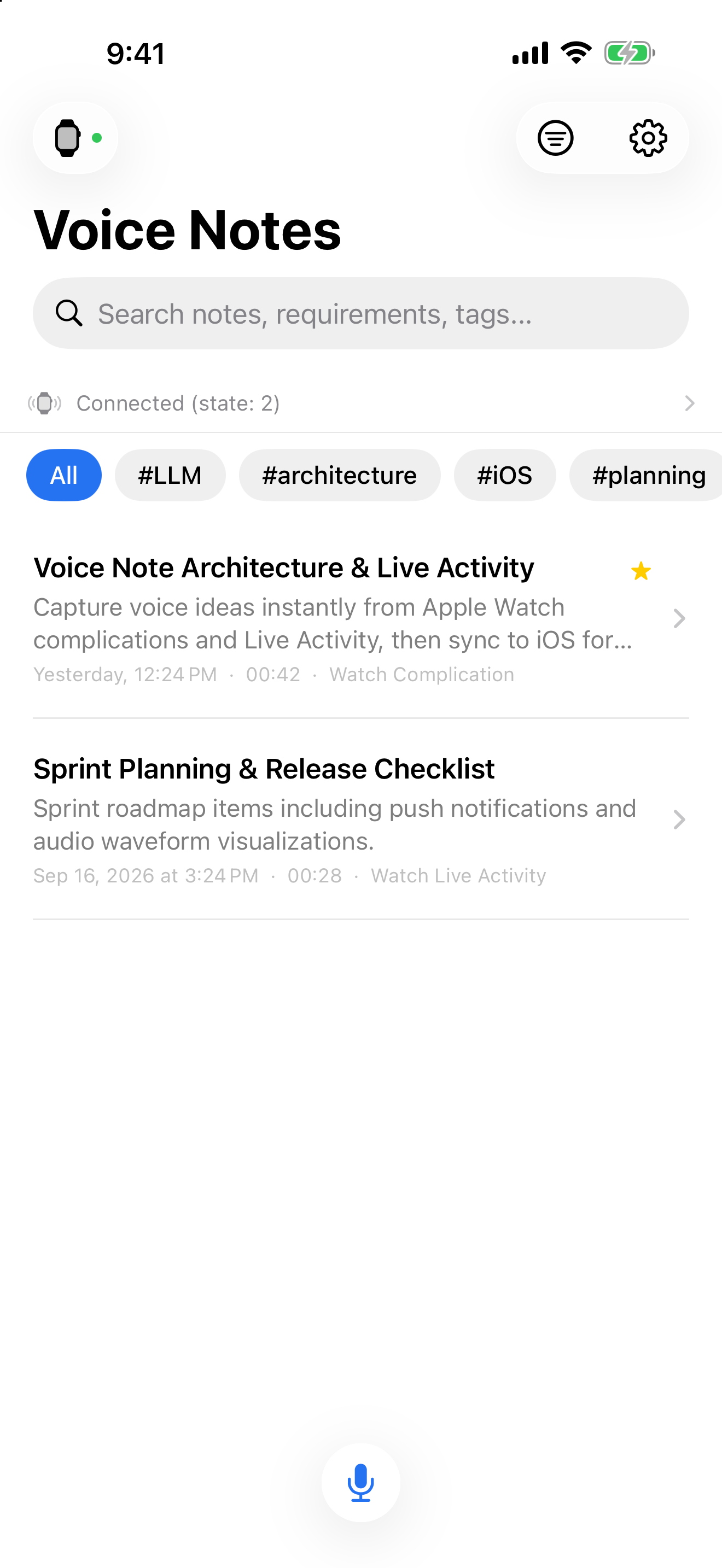

Voxbrief Notes List with Tag Filtering
01 · Notes Vault & Tag Filters iOS 17+

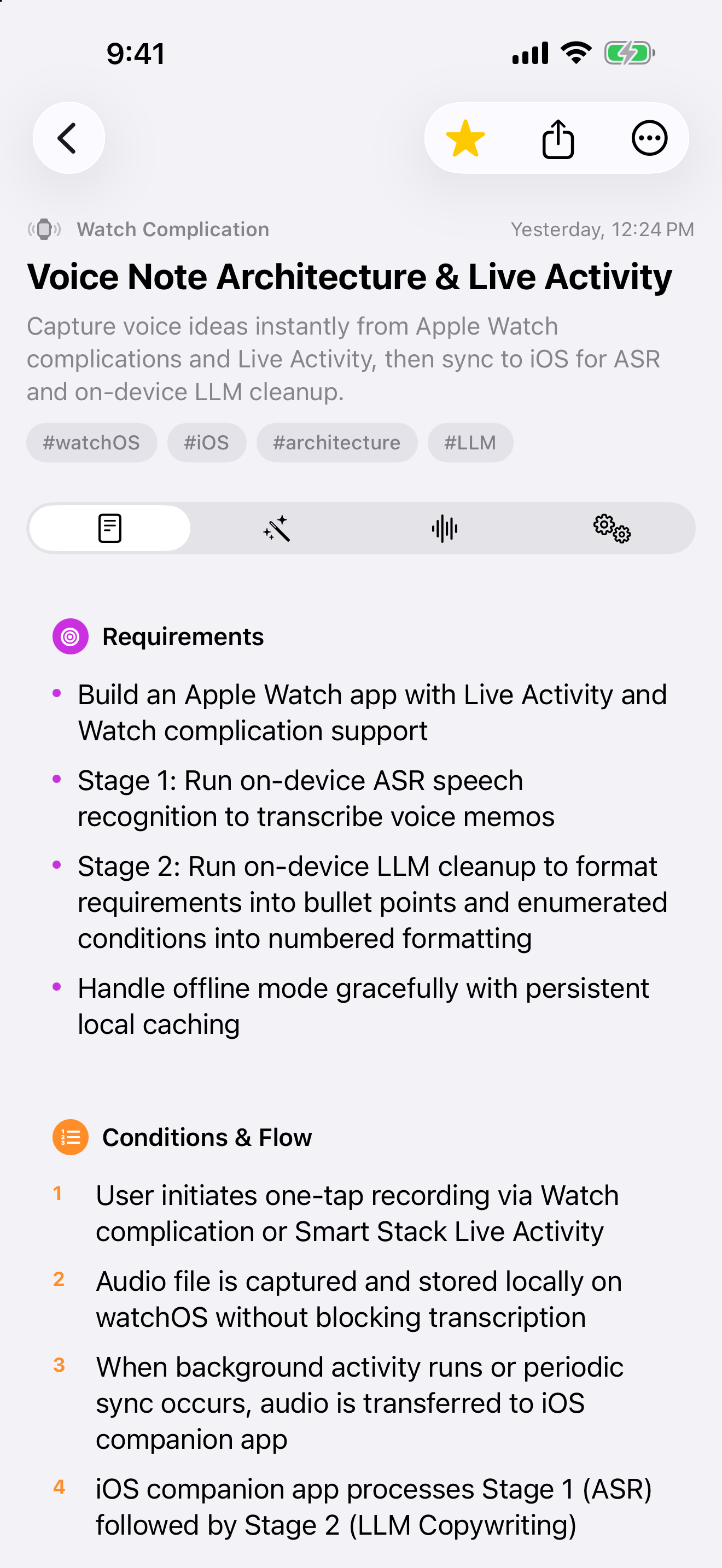

Structured Markdown Spec View
02 · Structured Spec View Markdown

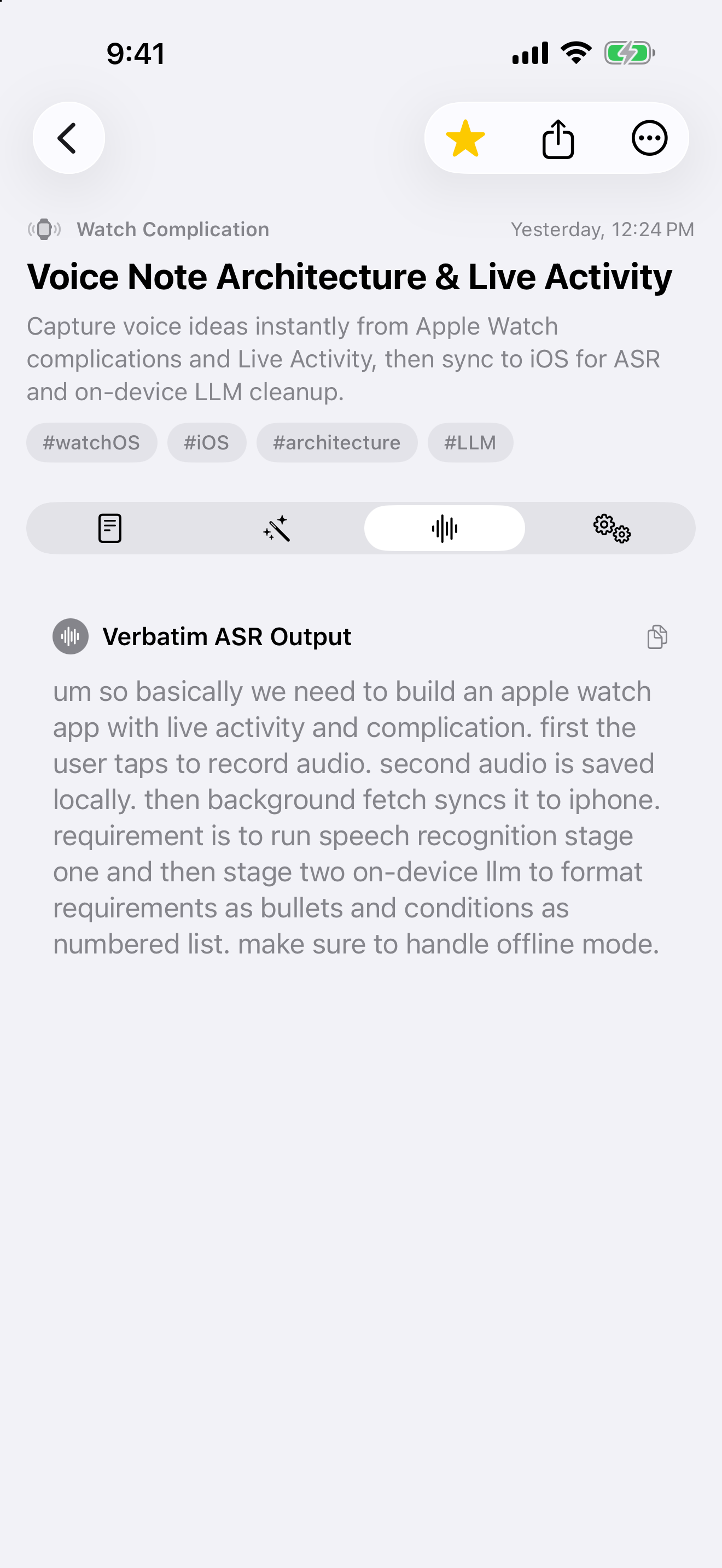

Verbatim Whisper Transcript Audit Trail
03 · Verbatim ASR Transcript WhisperKit

Inspect & Build from Source

Voxbrief uses XcodeGen and native Swift Package Manager. Clone, generate project files, and run the test suite in terminal.

# 1. Clone repository
git clone https://github.com/tianhaoz95/hejitech-apps.git
cd hejitech-apps/projects/voxbrief

# 2. Generate Xcode project via XcodeGen
xcodegen generate

# 3. Resolve WhisperKit & MLX dependencies
xcodebuild -resolvePackageDependencies -project Voxbrief.xcodeproj -scheme Voxbrief
AIR-GAPPED PRIVACY GUARANTEE

Your Thoughts Never Leave Your Silicon

Unlike commercial AI services that transmit your voice recordings and sensitive business ideas to third-party data centers, Voxbrief runs 100% locally on your personal Apple devices. No account creation, no analytics tracking, and no external servers.

Read Privacy Policy Support & FAQ
